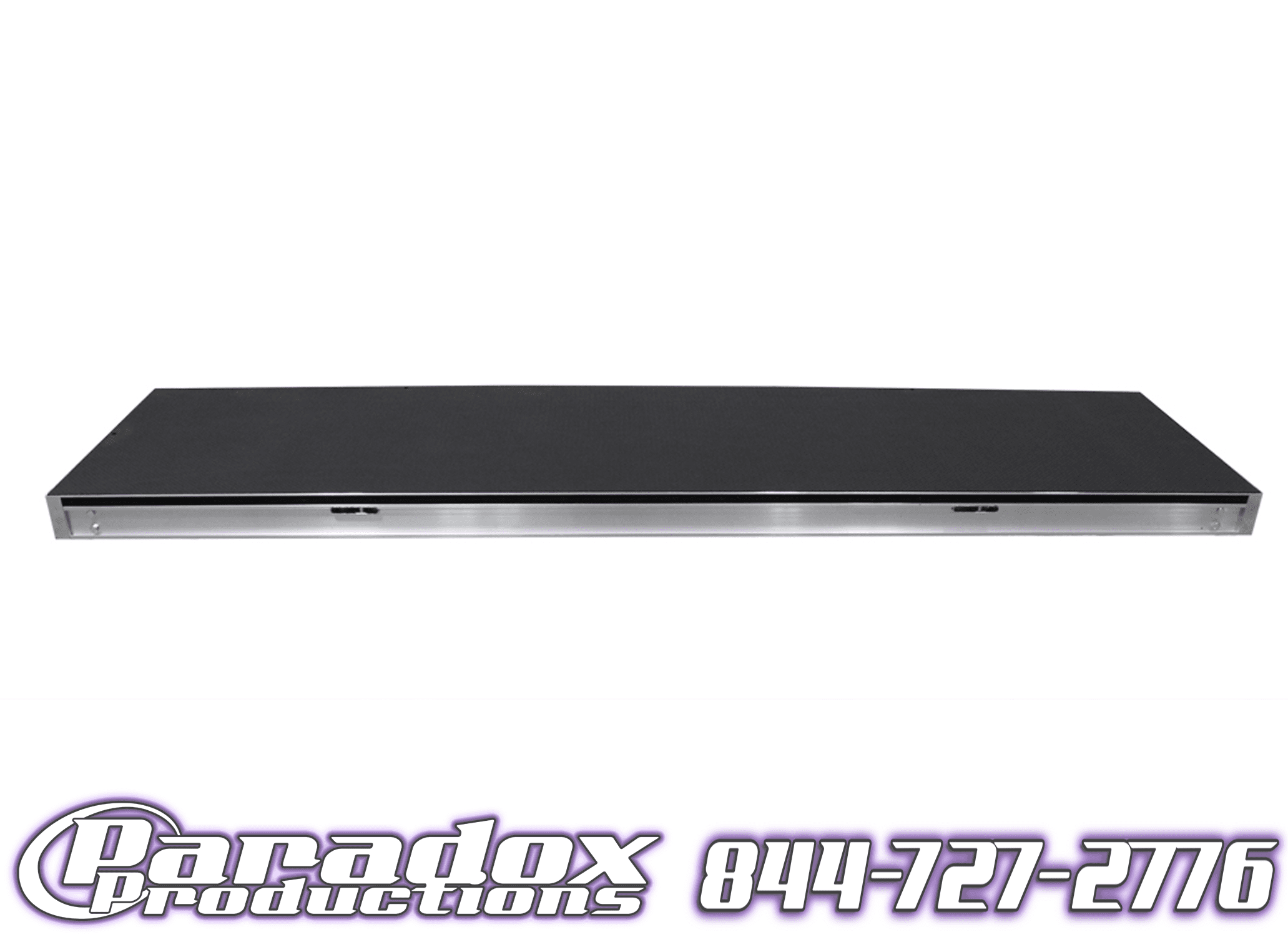

2' x 8' Stage Deck
The Staging Dimensions 2′ x 8′ Deck has a certified live load rating of 200 lbs per square foot. A 1″ thick 9-ply, marine grade, douglas fir plywood with a 0.050 black, non-skid quad ripple polypropylene is applied to the top surface and a 0.020 polypropylene is applied to the bottom/ COF Value: 0.83 grip surface.
It is constructed using 6005-T5 4-sided extruded aluminum tube and a specially designed 6005-T5 extruded aluminum corner.
The decks lock together using a Dual Lock™ butt joint cam type coffin lock offering 2,500 lbs of tensile strength. The locks are activated from the top or bottom of the deck with a standard 5/16 allen key. This locking feature provides additional stability to your entire stage.
Grade 5 Zinc plated bolts and #10 Zinc plated deck screws are used throughout the construction of the decks. Nylock nuts are used to eliminate vibration and noise interference when decks are in use as musical risers. All decks have a single standard center support brace running the length deck.
All decks come standard with 3/4″ hook Velcro on all sides of the deck, positioned in a recessed aluminum channel designed to protect the Velcro. This allows for easy installation and removal of accessories or advertising media such as stage skirting, closure panels or banners.
