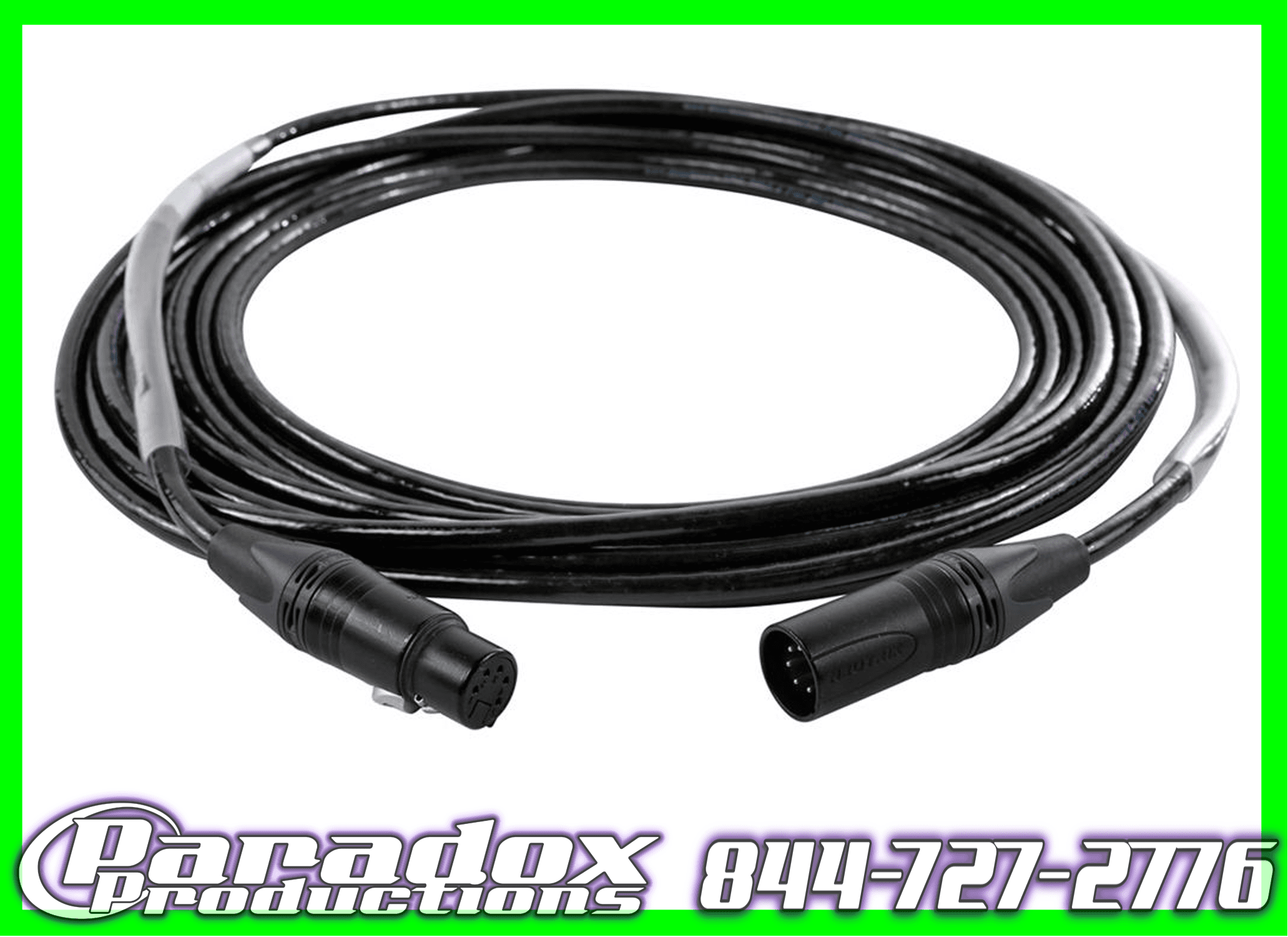

10 foot dmx cable photo

10' DMX Cable

$1.00

10′ DMX Cable Rental

Technical Specifications:

  • Polyethylene insulation
  • Dual Twisted Pair Data Cable (4 Conductors)
  • Polyethylene inner jacket
  • Duofoil® (100% coverage)
  • Cotton plus a tinned copper braid shield (85% coverage)
  • PVC jacket for durability
  • Nominal Characteristic Impedance: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
  • Nominal Velocity of Propagation: 66%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
  • Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
  • Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
  • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
  • Gold Plated Terminals
